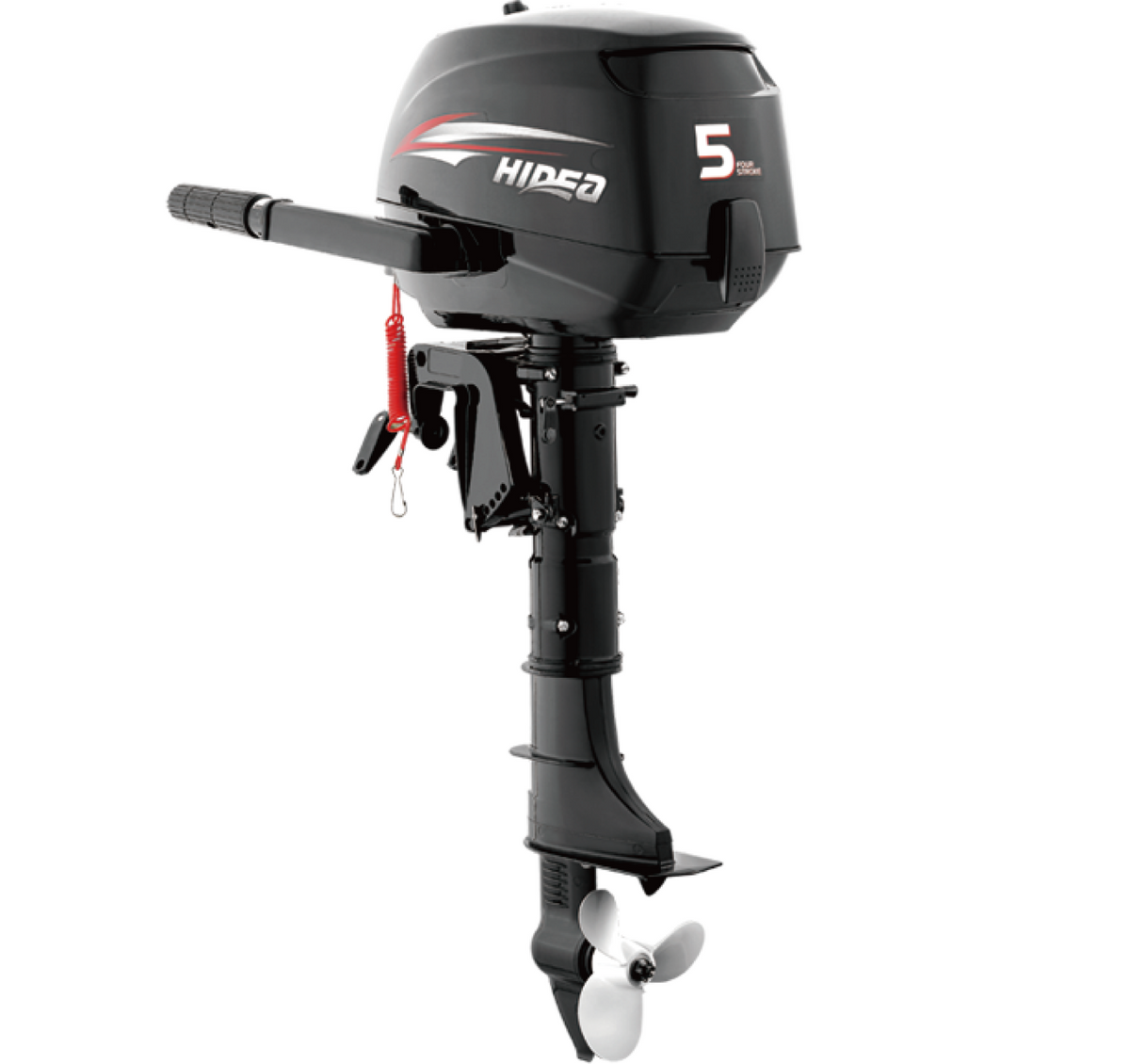

Hidea HDF5HS

A single-cylinder 112 cc outboard with a built-in fuel tank, well suited to fishing and short trips on small boats.

HD
Hidea brand
F
Four-stroke
5
Power in horsepower (HP)
H
Tiller control
S
Short shaft 381 mm (S)
5HPPower
24kgWeight
381mm (S)Shaft length
ManualStarting system
760 €
760 €
Sale
Price includes VAT
Out of stock Notify me
Out of stock

Available now

Hidea HDF2.5HS Hidea HDF2.5HS590 €In stock Hidea HDF6HL Hidea HDF6HL770 €In stock
  • CEcertified
  • 14-dayreturns
  • Ships nextworking day
  • Pick up at our store: Talino g. 10A, Vilnius
View full details

Specifications

Model: HDF5HS
Type: Gasoline
Max output: 5 hp / 3.6 kW
Max rpm range: 4500–5500
Stroke: 4
Cylinder: 1
Displacement: 112 cc
Bore x Stroke: 59 x 41 mm
Weight: 24 kg
Transom height: Short shaft 381 mm
Gear ratio: 27:13 (2.08)
Gear shift position: F-N-R
Ignition system: TCI
Cooling type: Water cooling
Starting system: Manual
Control system: Tiller control
Tilt: Manual
Fuel tank: Built-in + External tank
Capacity of fuel tank: 1.1 L + 12 L
Max fuel consumption: 1.6 l/h at 5500 rpm
Propeller material: Aluminum
Propeller size: 7-1/2” x 7”
Manufacturer: Hangzhou Hidea Power Machinery Co., Ltd.
Country of manufacture: China
Warranty: 3 years
Package dimensions: 115 x 65 42 cm
Gross weight in packaging: 31.5 kg

Description

The Hidea HDF5HS gives you that peace of mind you need when purchasing an outboard. With Hidea’s excellence in engineering, you can be assured that you are choosing an engine that will be with you for years to come. The HDF5HS features a new side mounted shift lever with reduced emissions and exceptional fuel economy, this little 5hp four-stroke is cleaner burning while also keeping your cost at the gas pump down. Also featured on the 5hp Hidea outboard is an integrated fuel tank for true grab-and-go portability.

Hidea HDF5HS Benefits:

  • Truly six layers of paint, good corrosion resistance
  • Using the US brand PPG paint, more beautiful exterior
  • Anti-watergrass design, truly without wrapped water grass
  • Light and compact
  • Side mounted shift lever, easy for operation
  • Greatly reduced vibration for smooth and stable running at all speeds
  • Greatly reduced induction noise for a quieter ride
  • CE approved

Easy Operation and Handling:

  • Digital CDI ignition for easier engine starting, quicker throttle response and smoother trolling
  • Recoil starter with larger reel making manual starting fast and easy
  • Shallow water drive
  • Adjustable steering friction for reducing steering effort
  • Newly designed holding grip and larger carrying handle
  • Newly designed with full aluminum bottom cover

Fundamentals for User Convenience and Reliability:

  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 1.1 liter fuel tank with fuel gauge

Standard equipment

Aluminum propeller
External fuel tank 12L
Fuel hose with pump and connectors
Shut-off cord
Impeller
Toolkit
Spark plug wrench
Propeller nut locking cotter pin
Starter rope
Gearbox drain plug
Gearbox drain plug gaskets
Owner‘s manual

Warranty and returns

The entire range of Hidea outboard motors is covered by a limited warranty for a period of three (3) years or 300 operating hours, whichever occurs first, commencing from the date of purchase.

Warranty Exclusions:
This warranty shall not apply under the following circumstances:

  • The product was acquired from unauthorized Hidea dealers. In such cases, the seller bears independent responsibility towards the purchaser in accordance with the applicable laws of the Republic of Lithuania;
  • Failure to perform maintenance in a timely manner as prescribed by the manufacturer;
  • Damage caused by force majeure events (including but not limited to fire, earthquake, flood) or due to third-party actions;
  • Violation of operational, storage, or transportation instructions as outlined in the user manual;
  • Unauthorized disassembly, adjustment, repair, or structural modifications carried out without the involvement or approval of an authorized Hidea service center;
  • Natural wear and tear of consumable parts, including but not limited to: motor or transmission oil, fuel and air filters, spark plugs, and other components with a limited service life.

Warranty Limitations and Termination:
The authorized dealer reserves the right to deny or limit warranty coverage if:

  • Structural modifications to the outboard motor have been made independently or through an unauthorized service center;
  • The customer fails to contact the authorized service center in a timely manner regarding a warranty claim.

Self-Repair and Spare Parts:
For self-repair purposes, spare parts may be obtained from an authorized Hidea dealer or the nearest service center. Contact details and locations are available in the “Where to Buy” section.

Certain minor issues may be resolved by the customer independently.

Return Policy:
Product returns are accepted within 14 calendar days from the date of receipt, provided the customer offers a detailed explanation of the issue. Please allow up to 5 business days for return processing.

All returned products must be in their original packaging and include all original accessories, such as the fuel tank assembly, fuel hose with connector, impeller assembly, etc.

The customer shall bear full responsibility for any return shipping costs.

Shipping and taxes

Orders are shipped on the next working day. Orders placed on weekends or public holidays are shipped on the first working day after them.

Delivery to Lithuania takes 1-2 working days, to Latvia and Estonia 2-3 working days, to Finland 2-5 working days. The delivery cost to your address is shown in the delivery calculator next to the Add to cart button and at checkout.

In Poland, ARGO boats are sold by our dealer HLO.PL Robert Zięba. Delivery to other countries is available on request. Send a request through the delivery calculator.

You can also pick up your order at our store, Talino g. 10A, Vilnius.

All prices include VAT. Orders are shipped within the EU, so there are no customs fees on delivery. For deliveries outside the EU, local customs duties and fees may apply.

Companies registered in another EU country with a valid VAT number can buy without VAT. Write to info@argo-drive.com before ordering and we will issue an invoice to your company. For private buyers, VAT is always included in the price.
