Model: SG-TF-S-50W
Maximum power (Pmax): 50W
Voltage at Pmax (Vmp): 17.4V
Current at Pmax (Imp): 2.88A
Open-circuit voltage (Voc): 20.5V
Short-circuit current (Isc): 3.05A
Cell efficiency: 24.40%
Maximum system voltage: 200V DC (IEC)
Power temperature coefficient: -0.27%/°C
Voltage temperature coefficient: -0.236%/°C
Current temperature coefficient: +0.058%/°C
Output power tolerance: ±3%
Operating temperature: -40°C to +85°C

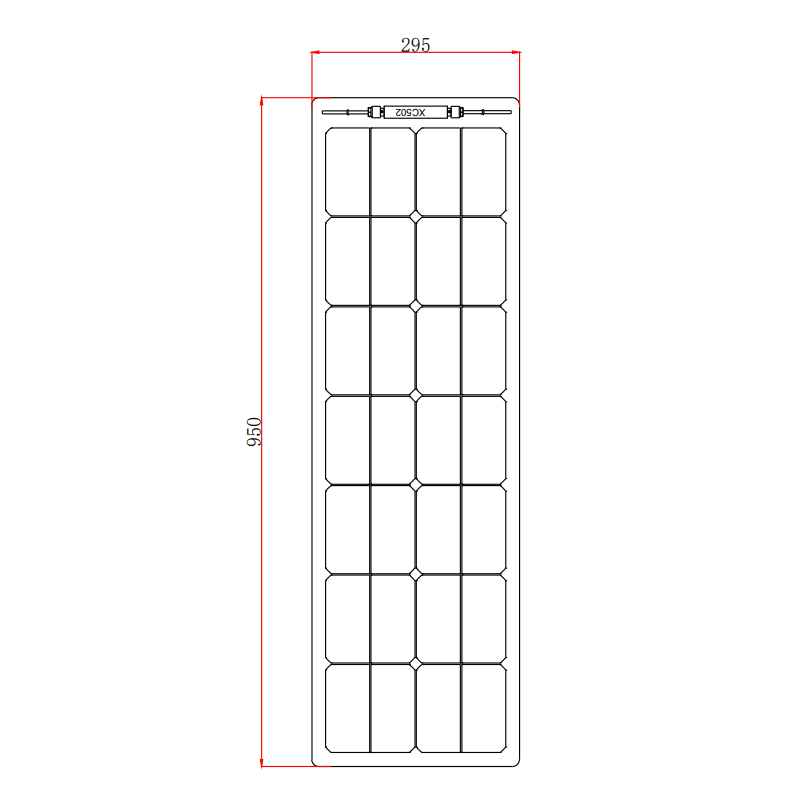

Module dimensions: 950 × 295 × 3 mm
Weight: 1.2 kg
No. of cells and connections: 28 (4×7)
Bending arch height: Maximum 110 mm
Output cable: 1000 mm, 2.5 mm² photovoltaic single-core cable (no connector)
Solar cell brand: SUNPOWER
Waterproof rating: IP68
Certifications: CE, ROHS
Warranty: 6 years
Our solar panels are designed and manufactured for extreme application conditions.
SG-TF-S-50W solar panel models feature is the Sunpower cells with an efficiency up to 24.4%. Today, it is one of the most efficient cells in the world.
The unique elongated rectangular shape is perfect for applications where you don’t have that much space. It is a black and long solar panel that can fit in a variety of places in your yacht or motorhome. It can also be very useful for small inflatable boats.
These panels have a water resistance rating of IP-68 and are resistant to salt and other aggressive
environments.
